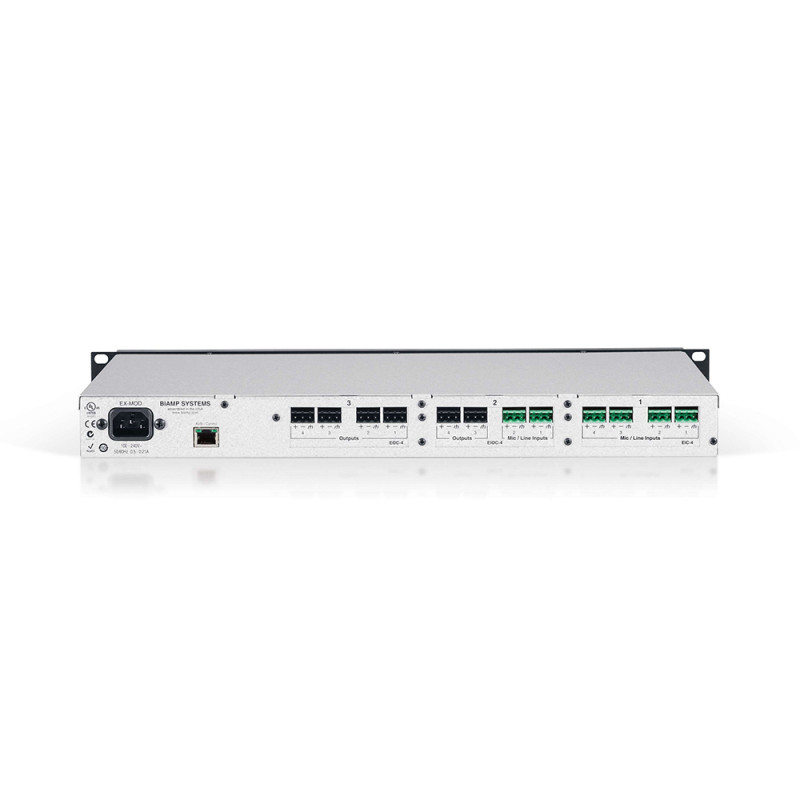

Tesira EX-MOD Modular expander device
The Tesira EX-MOD is a modular expander device designed to share audio with Tesira SERVER, SERVER-IO, TesiraFORTÉ, IDH-1 and OH-1 devices. The Tesira EX-MOD allows remote placement of Tesira inputs and outputs for shorter analog cable runs. The Tesira EX-MOD is a single rack space, rack-mountable device, powered by 100-240VAC.
Exact I/O configuration can be customized specifically for the local zone. The modular design allows for flexibility to change or expand the local system. The EX-MOD can be configured with up to three 4-channel input and/or output expander cards for a maximum of 12 channels.
Tesira expanders must be associated (proxied) via the equipment table to an AVB enabled SERVER, SERVER-IO, or TesiraFORTÉ device. Expanders have one Ethernet port that accommodates both control functions and AVB audio traffic. Please refer to the Supported Network Topologies section for more details
Unità di espansione modulare che accetta fino a 3 schede IO per un totale di 12 canali ingresso microlinea eo uscita di linea in un sistema Tesira, Alimentazione interna 110-240VAC; bilanciati elettronicamente con morsetti euroblock; Guadagno variabile da 0 a 66dB con step di 6dB per ingressi; Alimentazione Phantom a 48VDC; livello regolabile da -100dB a +12dB per linea uscita; Livello uscita selezionabile a step ( 24dBu, 18dBu, 12dBu, 6dBu, 0dBu, -3dBu ) per un giusto accoppiamento alle apparecchiature collegate; audio e controlli da sistema AVB; Possibilità di riverse polarità; indicatori frontali dello status apparecchio;1 unità rack
- Up to three I/O cards in any combination: EIC-4, EEC-4, EOC-4 and EIOC-4
- Up to 12 channels total of analog audio
- AVB connection to Tesira system for audio networking, configuration and control
- Front panel LEDs for device status indications
- Internal universal power supply
- Rack mountable (1RU)
- CE marked, UL listed and RoHS compliant
- Covered by Biamp Systems’ 5-year warranty
